Product Dimensions 12"h x 48"w x 20"d

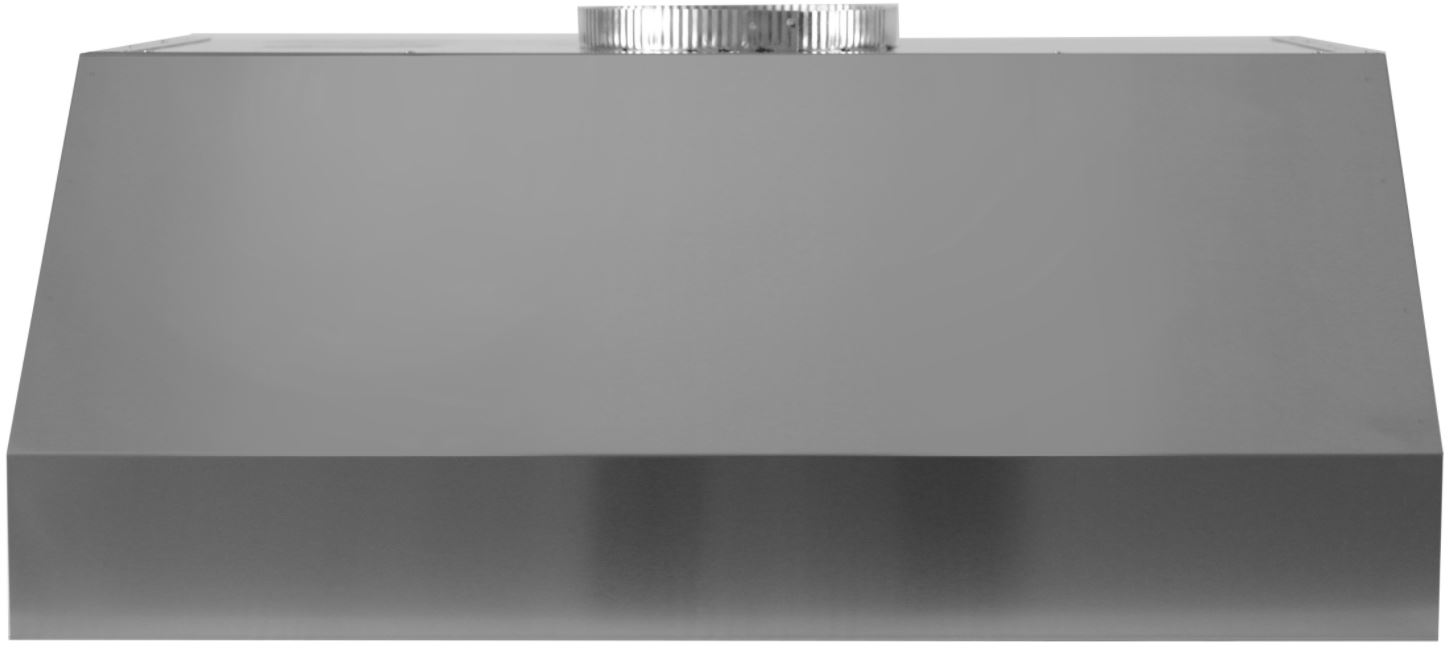

Trade-Wind® H3200 Series 48-inch stainless steel wall mounted range hood delivers efficient ventilation with quiet operation and modern styling ideal for kitchens requiring reliable smoke grease and odor removal while offering durable construction easy maintenance and consistent performance for everyday cooking needs.Read More
Recessed controls and LED lights
Buttons and light glare hidden from the front
Two LED lights brighten cooking area (three on 48” model)
Commercial grade stainless steel (#304 grade) and galvanized steel construction
CFM and sound tested by Energy Systems Laboratory at Texas A&M University
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration
3-speed motor control reduces blower and air movement sound
Sone rating of 1.5-7
Two large, oversized 14" x 15" stainless steel baffle filters reduce air movement sound and improve ventilation performance (three on the 48" model)
Electronic touch controls with blue LED back lighting. Plus NEW Remote Control with optional 5 minute shut off timer.
Optional ductless conversion kit (MODEL #: 5BL-33-300-DCK1) on 390 CFM Models only
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Duct Size (in.) | 10 |
| Maximum CFM | 780 |
| Appliance Fit Width (in.) | 48 |
| Width (in.) | 48 |
| Height (in.) | 12 |
| Depth (in.) | 20 |
| Product Weight (lbs.) | 38 |
| Collection | H3200 |
| Series | H3200 |
| Voltage | 120 |
Specifications | |
| Models | 30", 36", 42" & 48" |
| Hood Style | Trapezoid |
| Installation | Installs easily under standard size upper cabinets. Wiring diagram label for simple electrical connectio |
| CFM | Internal motor models deliver 390 CFM (code compliant), 600 CFM, or 780 CFM |
| Material | Commercial grade stainless steel (#304 with #4 brush finish) |
| Filters | 30", 36" & 42" Models: 2 Oversized 14" x 15" stainless steel Baffle Filters 48" Model: 3 Oversized 14" x 15" stainless steel Baffle Filters Dishwasher safe with 2 easy-grip handles. |
