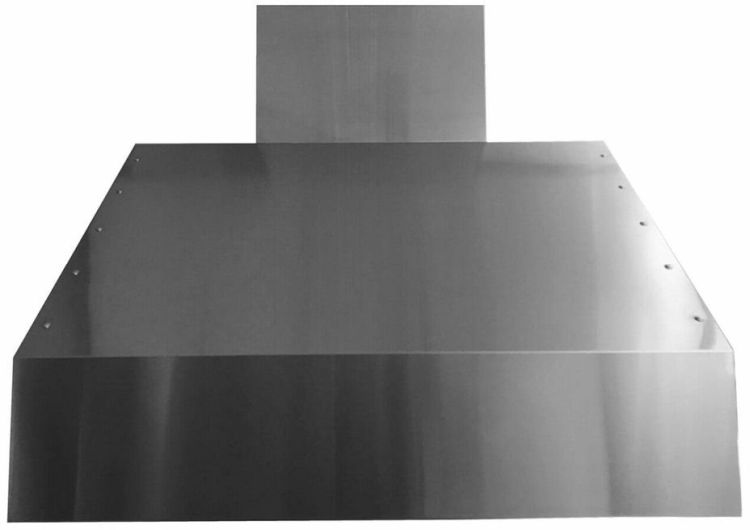

Trade-Wind® 7200 Series 36" Stainless Steel Outdoor Barbecue Hood with 5 amp variable and 2 dimmable halogen lightsRead More
Recessed controls and LED lights
Buttons and light glare hidden from the front
Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model)
Commercial grade stainless steel (#304 grade) and galvanized steel construction
CFM and sound tested by Energy Systems Laboratory at Texas A&M University
Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration
3-speed motor control reduces blower and air movement sound
Double bank of baffle filters allows for the largest active capture area in outdoor hoodse.
Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.
Cool touch knarled knobs for easy control
Remote blower models are pre-wired for use with most in-line or exterior blowers (6 Amp maximum draw)
Hoods with internal blowers are all pre-wired and pre-assembled
Top only 10″ round discharge (two 10” on larger models). For rear discharge, change blowers’ orientation
All 24” bodied hoods easily convert from vertical discharge to horizontal at job site
Optional 2-piece, telescopic single (18″ wide) or double (30″ wide) duct covers are available, for up to 10′ or 12′ ceilings
Durable, dishwasher safe commercial stainless steel baffle filters
All stainless steel exterior design is easy to keep clean and eliminates grease traps
General Specs | |
| Color | Stainless Steel |
| Color/Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Ventilation Type | Ducted |
| Vent Location | Top |
| Outdoor Approved | Yes |
| Appliance Fit Width (in.) | 36 |
| Width (in.) | 36 |
| Product Weight (lbs.) | 113 |
| Collection | 7200 Series |
| Series | 7200 Series |
| Voltage | 120 |
| Amp | 15/20 |
| Frequency | 60 |
Specifications | |
| Models | 36”, 42”, 48”, 54”, 60”, 66” & 72” |
| CFM | Two or four internal sealed motors deliver 1200 CFM or 2300 CFM Optional in-line blowers deliver 1266 CFM |
| Material | Heavy gauge commercial stainless steel (#304 grade, 22-gauge) Dimmable 50 watt halogen lights |
| Filters | Four 12” by 14” baffle filters improve performance (six or eight filters on larger models) Design of the stainless steel commercial baffle filters adds a professional appearance and improved performance |
| Installation | Generously proportioned 32” depth at bottom, 15″ depth at top, 24″ high hood provides an exceptional capture area |
